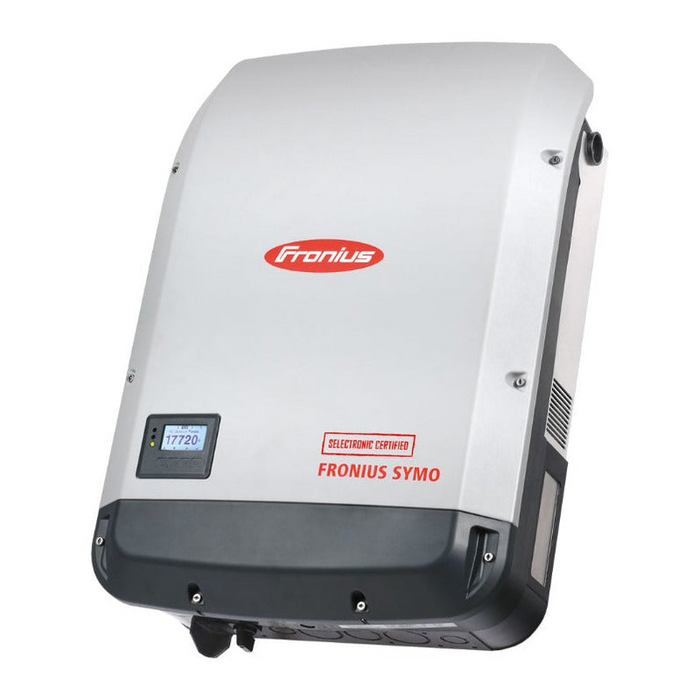

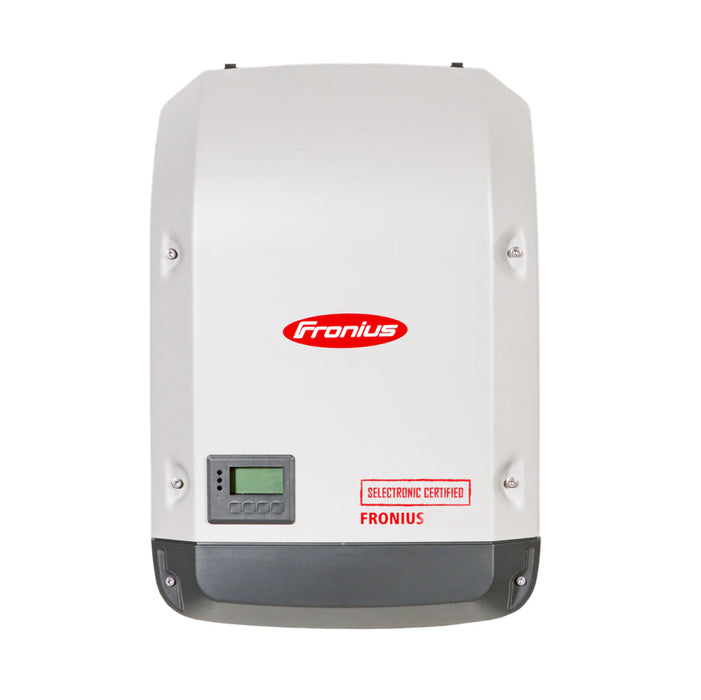

FRONIUS Symo Selectronic Certified Solar Inverter 3 Phase 2 MPPT

by Fronius
Original price $4,597.00 - Original price $6,228.00
Original price
$4,597.00
$4,597.00 - $6,228.00
Current price $4,597.00
System Size: 8.2kW

The FRONIUS Symo Selectronic Certified Solar Inverter 3 Phase 2 MPPT is designed to provide seamless integration with SP PRO systems, delivering unmatched energy management for commercial and residential solar installations. Available in 8.2kW, 10kW, 15kW and 20kW variants, this inverter is Selectronic Certified, ensuring precise control over energy flow, enhanced battery life, and superior system efficiency through Managed AC Coupling technology.

This system allows for flexible solar power management, with the ability to use PV energy directly, charge batteries, or export surplus energy to the grid. The Selectronic Certified technology ensures smooth communication with the SP PRO, enabling accurate site consumption and generation data logging. With an IP65 rating and built-in WLAN capabilities, this inverter is both durable and easy to monitor remotely, making it ideal for future-proof solar installations.

Specifications

Dimensions (height x width x depth): 725 x 510 x 225 mm
Weight: 34.8 kg | 43.4 kg
Degree of protection: IP 66
Protection class: 1
Overvoltage category (DC / AC): 1) 2 / 3
Night time consumption: < 1 W
Inverter design: Transformerless
Cooling: Regulated air cooling
Installation: Indoor and outdoor installation
Ambient temperature range: -25 - +60 °C
Permitted humidity: 0 - 100 %
DC connection technology: 6x DC+ and 6x DC- screw terminals 2.5 - 16 mm2
Mains connection technology: 5-pole AC screw terminals 2.5 - 16 mm2
Certificates and compliance with standards: AS 4777-2, AS 4777-3, AS 3100, IEC 62109-1/-2, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62116, IEC 61727,
CER 06-190, G83/2, G59/3, UNE 206007-1, SI 4777, CEI 0-16, CEI 0-21
