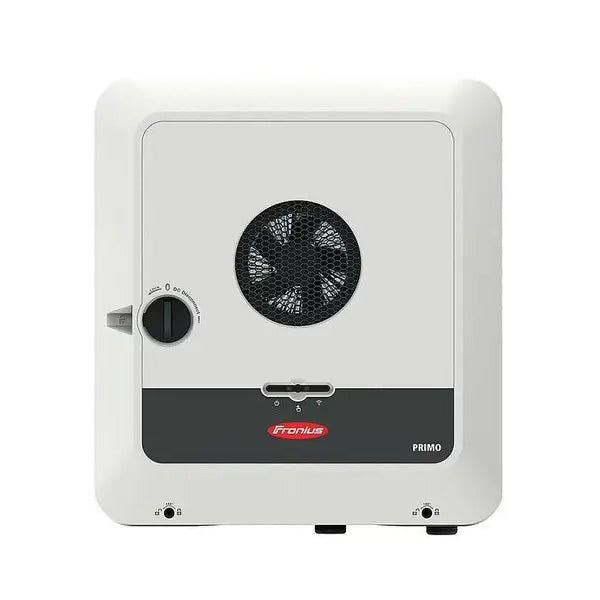

Fronius Primo GEN24 Single Phase 2 MPPT Solar Inverter

Fronius Primo GEN24 Single Phase 2 MPPT Solar Inverter

by Fronius
$1,767.00 - $2,940.60
$1,767.00
$1,767.00 - $2,940.60
$1,767.00
System Size: 3 kW

The Fronius GEN24 Primo 1 Phase 2 MPPT Solar Inverter is a versatile, hybrid inverter designed for single-phase solar systems. With backup power capabilities, it ensures uninterrupted energy supply even during outages. Its compact design (474 x 530 x 165 mm) and lightweight build (19 kg) make installation simple, while the IP66 protection class ensures durability in various environments. Featuring dual MPPT inputs, a max PV generator power of 9.00 kWp, and a transformerless design, this inverter offers high efficiency and flexibility. Perfect for residential use, it supports seamless integration with hybrid solar setups and advanced energy management.

Specifications

Dimensions (height × width × depth) mm: 530 × 474 × 165
Weight (inverter/with packaging) kg: 15.4/19
Degree of protection: IP 66
Safety class : 1
Night-time consumption W: < 10
Overvoltage category (DC/AC)7: 2/3
Inverter concept: Transformerless
Cooling: Active Cooling Technology
Installation: Indoor and outdoor installation
Ambient temperature range °C: -40 to +60
Permissible humidity %: 0 - 100
Noise emissions dB (A): < 42
Max. altitude m: 4,000
DC PV connection technology: 4 × DC+ and 4 × DC- push-in tension clamp terminals 2,5 - 10 mm²
AC connection technology:
3-pin AC push-in tension clamp terminals 2.5 - 10 mm²
3-pin backup power push-in tension clamp terminals 1.5 - 10 mm²
2 × PE screw terminals 2.5 - 16 mm² and 3 × 2.5 - 10 mm²
Certificates and compliance with
standards8:
IEC 62109, IEC 62909, AS/NZS 4777.2, CEI 0-21,
ABNT BNR 16149 und 16150, IEC 62116, IEC 61727, G98/G99, R25
Backup power functions9: PV Point and Full Backup
Producing country: Austria
Life Cycle Assessment: According to ÖNORM EN ISO 14040 and 14044
(verified by employees of Fraunhofer IZM)
